CORE RF HARDWARE FOR SATELLITE & WIDEBAND LINKS
HIGH-FREQUENCY COMMUNICATION MODULES
From signal generation and broadband amplification to Ku-band uplink and downlink integration.
A focused module range spanning 30 MHz–18 GHz. Verified public parameters help engineering, procurement and integration teams identify the right starting point quickly.
Conceptual product grouping | Final appearance depends on configuration
PRODUCT LINEUP
Select by position in the RF chain
From test-signal generation to power amplification, each module presents the frequency, power, gain and integration parameters that matter most.
01 / SIGNAL GENERATION
Full-band signal source
FULL-BAND SIGNAL SOURCE
Generate multiple modulation formats, sweep, hop, aggregate carriers and load custom waveforms across 30 MHz–6 GHz.
Application
For RF testing, spectrum simulation, communications validation and system integration. The key figures below make multi-channel and wideband fit easy to assess.

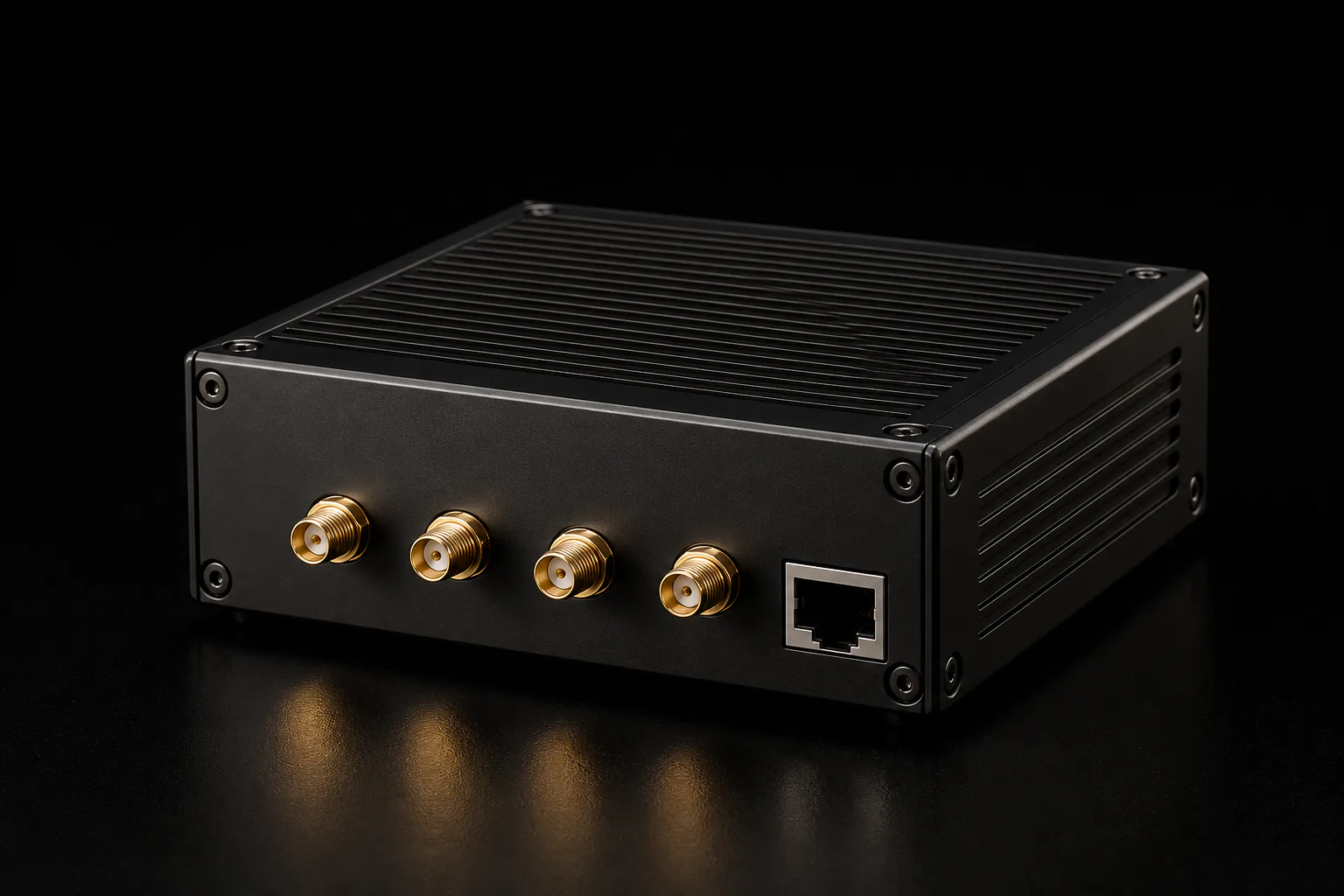

Concept visualization | No publishable product photograph was supplied
Key public parameters
30 MHz — 6 GHz- Frequency range
- 30 MHz–6 GHz
- Independent channels
- 4
- Instantaneous bandwidth
- 200 / 250 / 400 / 500 / 800 MHz
- Output level
- −30 to +5 dBm
- Sweep speed
- 200 MHz/μs
- Hop rate
- ≤100,000 Hop/s
- Carrier aggregation
- 3 carriers / channel
- Response delay
- ≤1 ms
1 dB steps
Up to 12 across four channels
Supported waveforms
Core capabilities
- Sweep
- Frequency hopping
- Carrier aggregation
- ARB loading
- Remote control

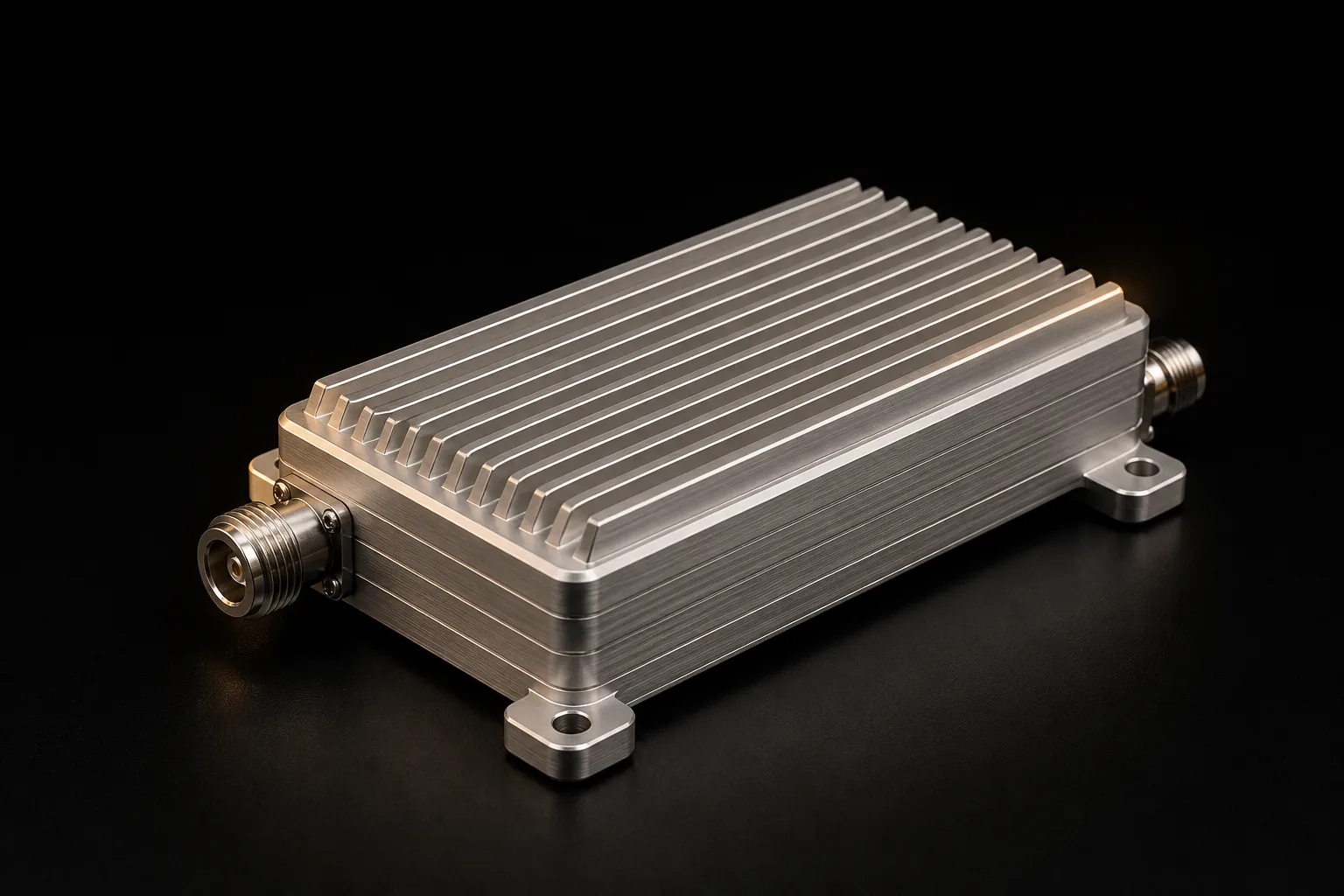

Concept visualization based on the supplied mechanical parameters
Ultra-wideband power amplifier
ULTRA-WIDEBAND POWER AMPLIFIER
A 6–18 GHz GaN power-amplifier module providing 100 W saturated output across a broad test and communications band.
- Frequency range
- 6–18 GHz
- Saturated output
- 100 W
- Gain
- 50 dB
- Gain flatness
- ±1 dB
- Supply
- 28 VDC
- Dimensions
- 200 × 160 × 35 mm
Application
For broadband RF tests, EMC testing, link gain support and multi-band system integration.
Source product photograph

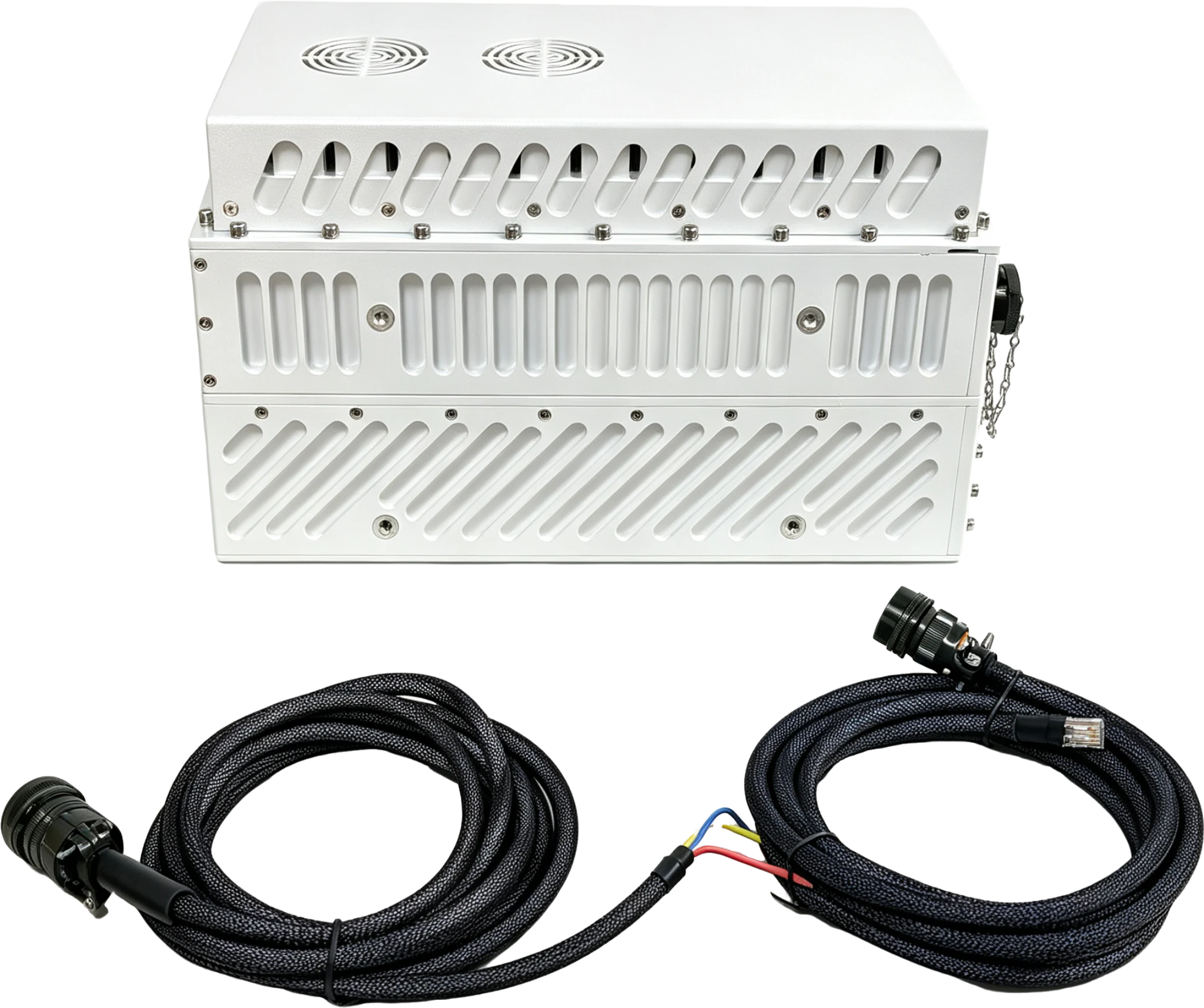

Ku-band uplink BUC
KU-BAND UPLINK BUC
Upconverts 950–1700 MHz IF to the 13.75–14.50 GHz Ku band and provides 250 W-class RF output.
- IF input
- 950–1700 MHz
- RF output
- 13.75–14.50 GHz
- Output power
- 250 W
- Small-signal gain
- 60 dB
- Power technology
- GaN
- Monitoring
- RJ45 / RS485
Application
For authorized satellite-ground-station uplink integration, terminal validation and communications-system testing.
Source product photograph

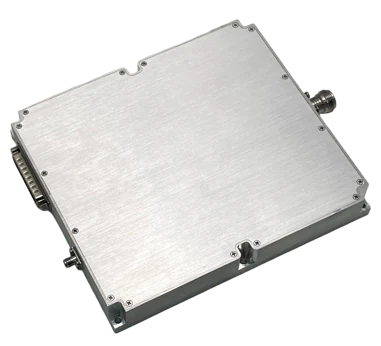

Ku-band downlink amplifier
KU-BAND DOWNLINK AMPLIFIER
A 10.7–12.7 GHz, 100 W-class amplifier for boosting RF signals across commonly used Starlink Ku downlink frequencies.
- Frequency range
- 10.7–12.7 GHz
- Output power
- 100 W class
- Gain
- 53 dB
- Supply
- 28 VDC
- Dimensions
- 160 × 120 × 25 mm
- Protection
- Reverse VSWR
Application
For receive-chain testing, laboratory signal amplification, Ku-band validation and authorized satellite-communications integration.
QUICK SELECTION
Compare the four module types
| Product | Frequency | Output / capacity | Key characteristic | Typical application |
|---|---|---|---|---|
| Full-band signal source | 30 MHz–6 GHz | 4 channels / up to 12 carriers | Sweep, hopping, multiple formats | RF test and communications validation |
| Ultra-wideband PA | 6–18 GHz | 100 W | 50 dB gain / GaN | Wideband amplification and EMC test |
| Ku uplink BUC | 13.75–14.50 GHz | 250 W | Upconversion / remote monitoring | Satellite-ground-station uplink integration |
| Ku downlink PA | 10.7–12.7 GHz | 100 W class | 53 dB gain / protection | Ku downlink amplification and validation |
SELECTION SUPPORT
Share your frequency, power and interface requirements
We can help confirm a module based on target band, output power, supply, cooling and control interfaces, then provide approved technical documentation.
Satellite-link products are offered only for authorized testing, evaluation, integration and compliant applications. Some detailed data requires end-use verification.
