Latest counter-UAS technology
AIRBORNE
MILLIMETER-WAVE RADAR.
ZERO-DELAY.
100% DRONE INTERCEPTION.
Our latest airborne millimeter-wave radar solution is the result of years of development, delivering a genuinely low-cost and effective approach to low-altitude interception.

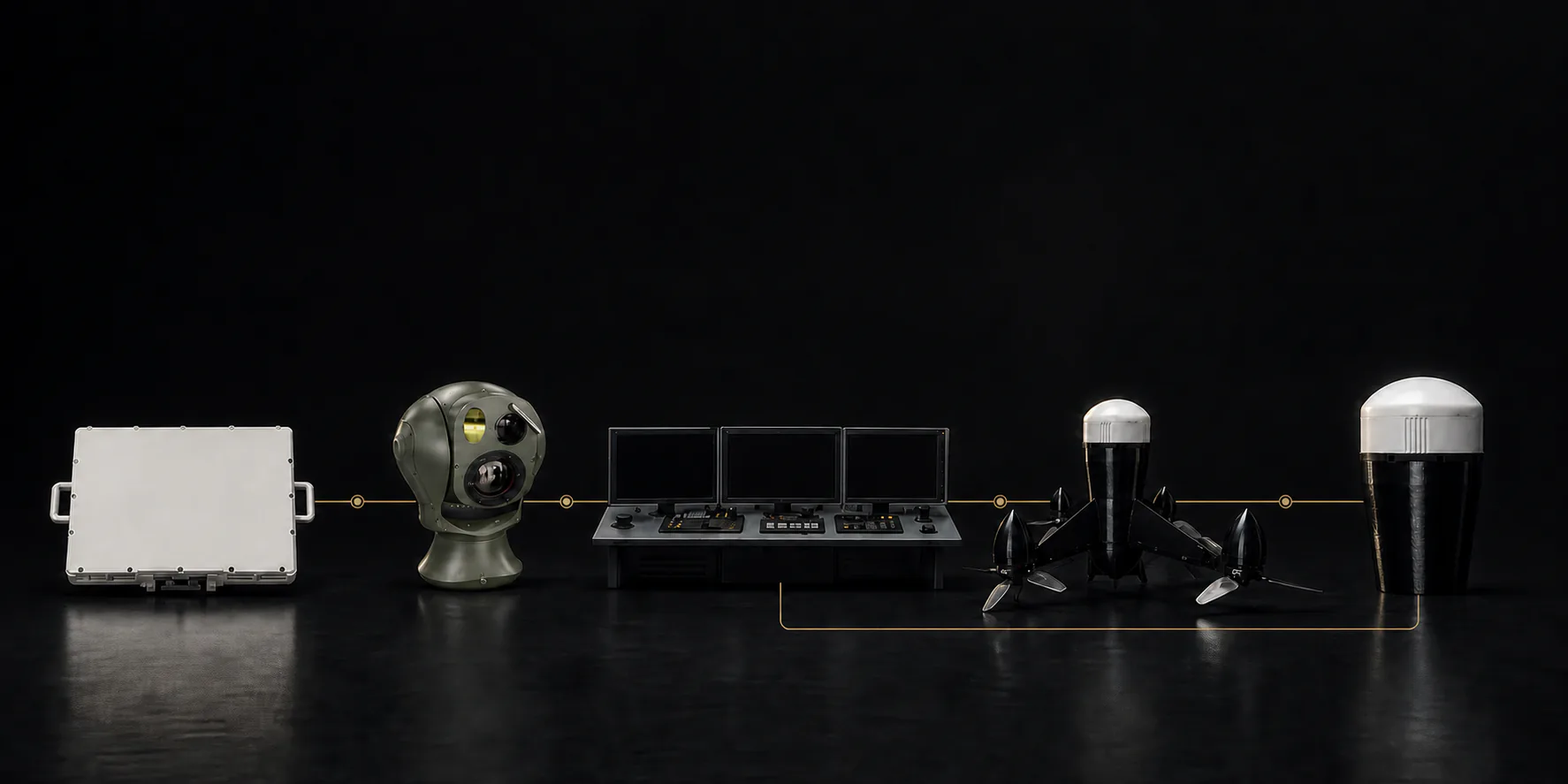

Integrated architecture
One connected picture from discovery to reacquisition.
Conceptual system imagery for integration planning. Technical configuration is available upon authorized request.
01
Ground radar
Wide-area discovery and track initiation.
02
Electro-optical
Visual confirmation and identification support.
03
Command & control
Data fusion, coordination and authorized tasking.
04

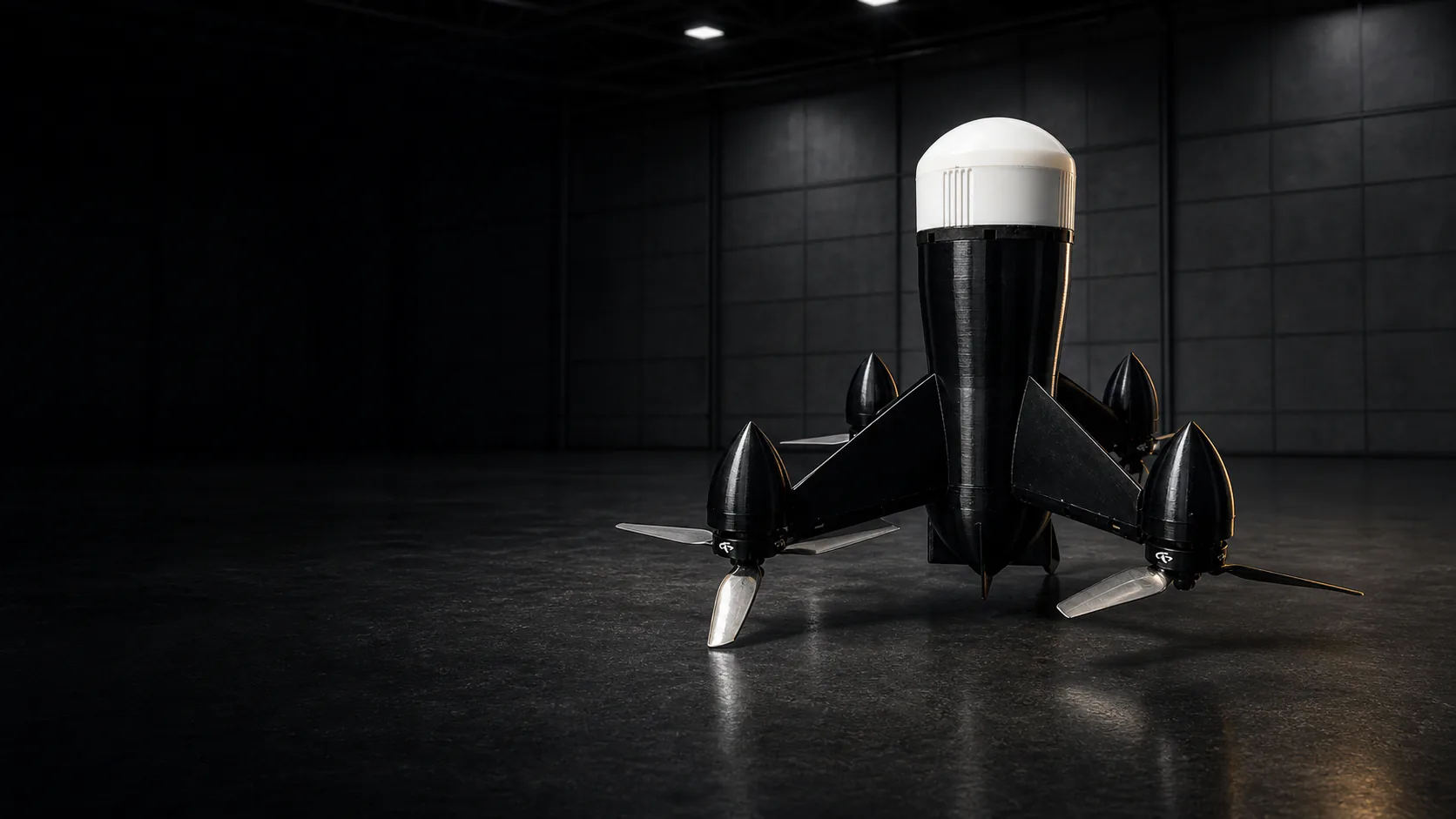

Interceptor platform
Authorized launch and airborne response.
05
Airborne radar
Airborne sensing and target reacquisition.
05 / Airborne seeker

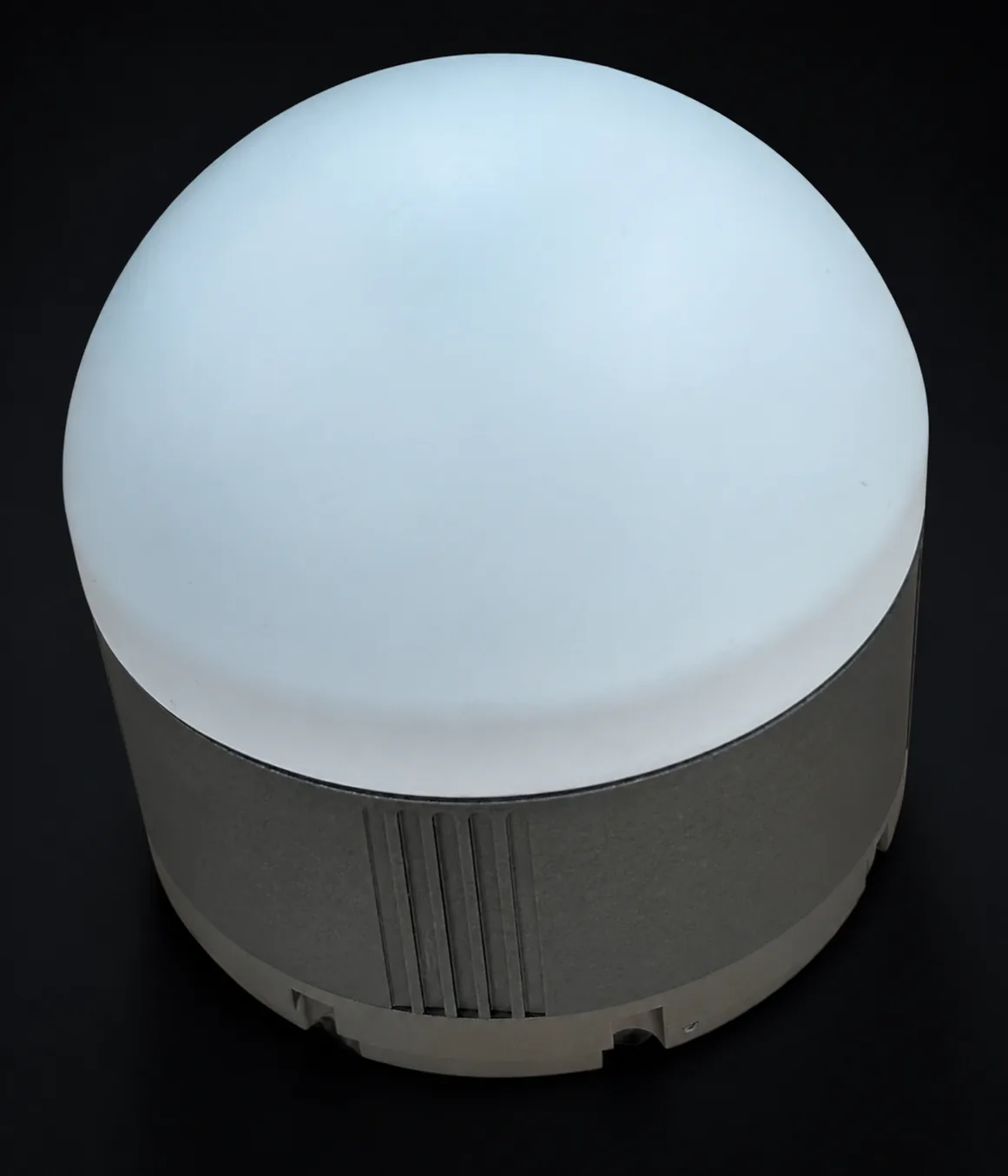

TS-1101 Micro active radar seeker
Active scan. Rapid acquisition. Continuous tracking.
Designed for compact airborne sensing chains, TS-1101 rescans from an incoming target cue, establishes a stable track and continuously outputs angular, range and relative-velocity information.
300 g
Weight
35 W
Power
Φ85 × 83 mm
Envelope
<10 ms
Latency
≥500 m
Range
Ka / Ku
Band
Scan / track lifecycle
Angle · range · relative velocity
- 01Target cue input
- 02Active scan
- 03Target reacquisition
- 04Continuous tracking
- 053D information output
Technical parameters
Detection performance
- Operating band
- Ka / Ku (customizable)
- Representative target
- RCS 0.01 m²
- Detection range
- ≥500 m (RCS 0.01 m²)
- Range accuracy
- ≤1 m
- Velocity accuracy
- ≤0.5 m/s
- Angular accuracy
- ≤1.5°
- Update rate
- ≥100 Hz (CW)
- Latency
- <10 ms
Physical integration
- Weight
- 300 g
- Dimensions
- Φ85 × 83 mm
- Power consumption
- 35 W
Environmental reliability
- Operating temperature
- −40 to +50°C
Conceptual integration presentation. Technical configuration is subject to authorized documentation.
Request complete technical informationAIRBORNE RADAR COUNTER-UAS.
HIGH-SPEED. ALL-ENVIRONMENT.
BLACK NIGHT TO SANDSTORM.
24/7 automated protection for your private property.
01

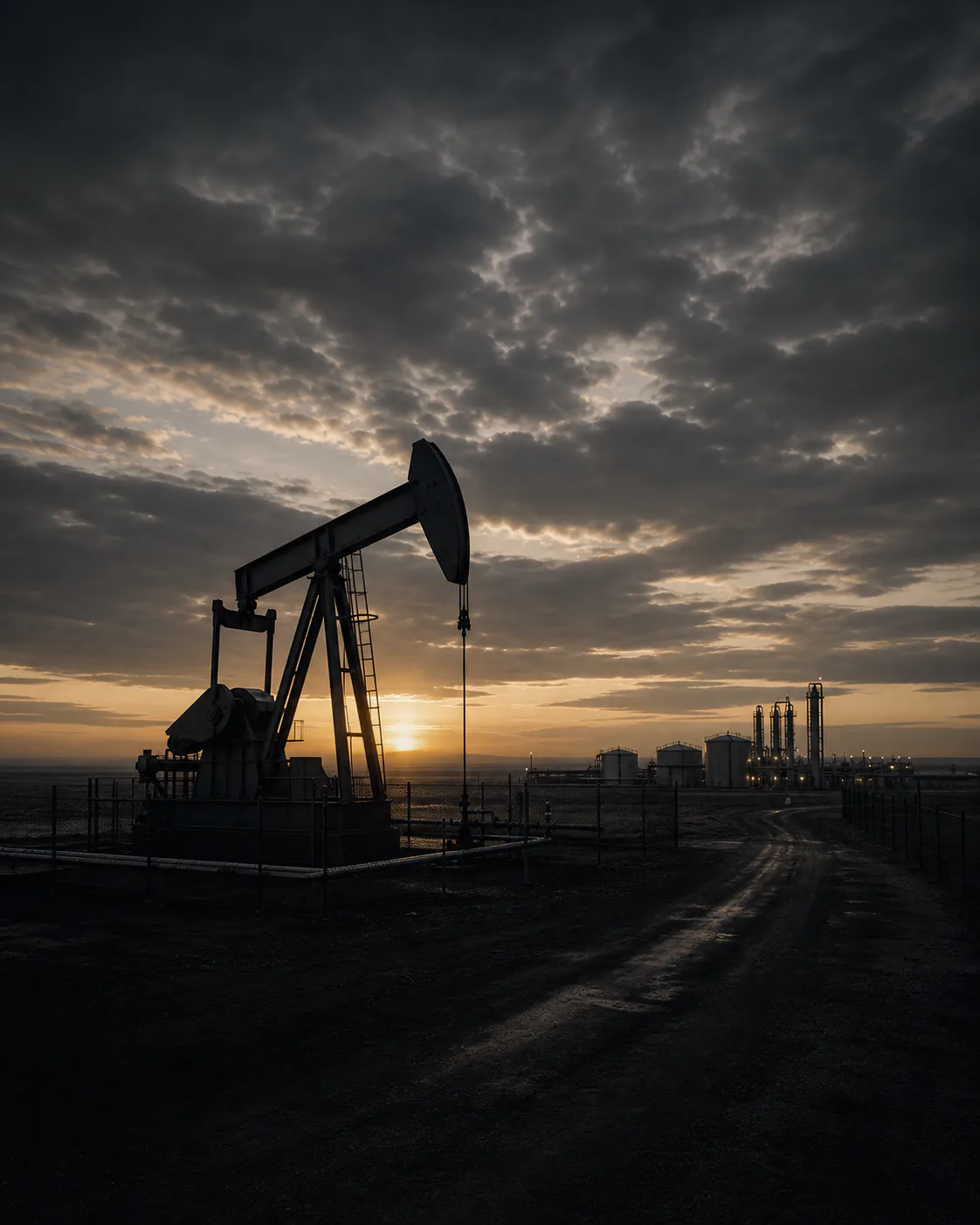

Oil field
Wide perimeter awareness.
02

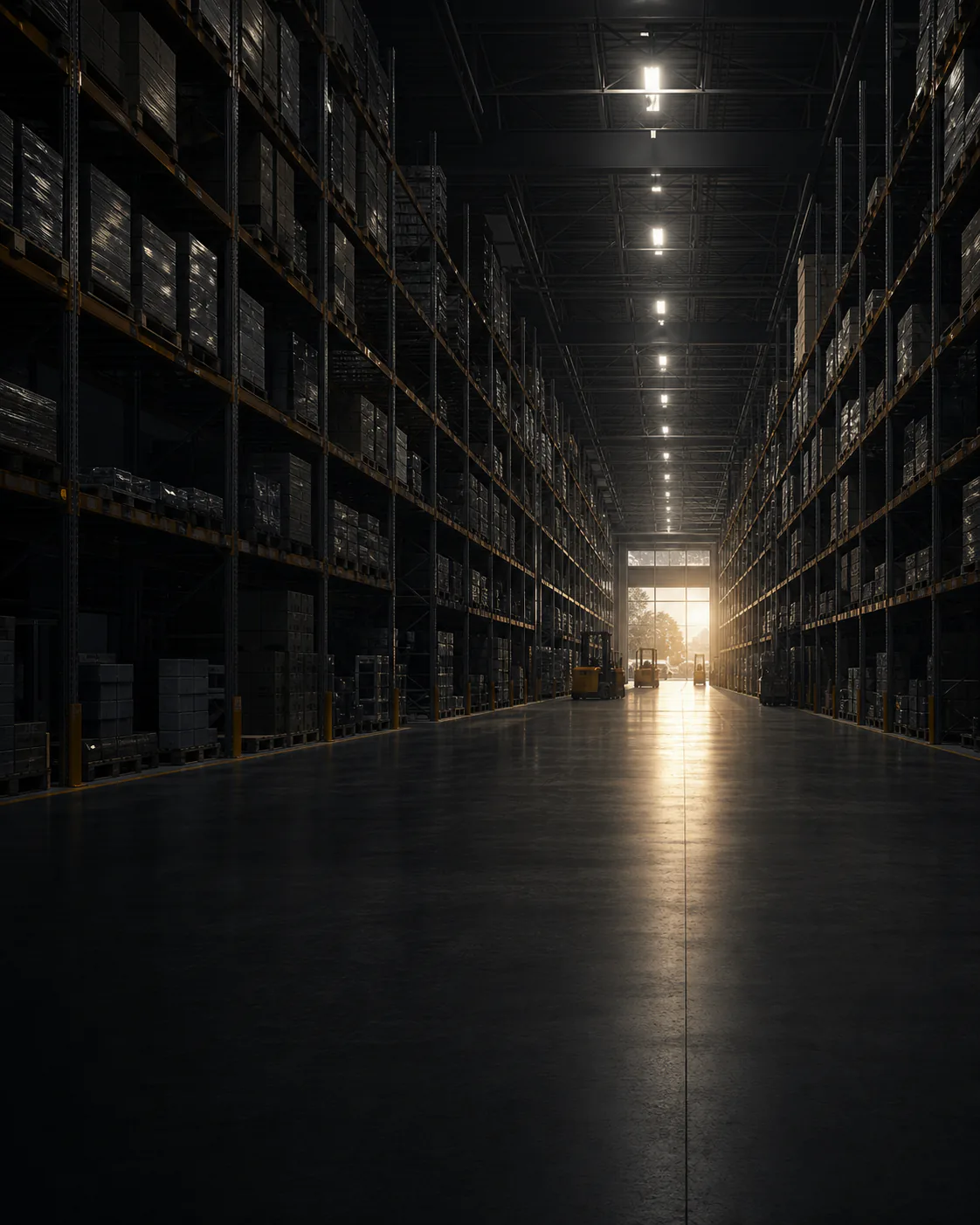

Warehouse
Persistent site coordination.
03

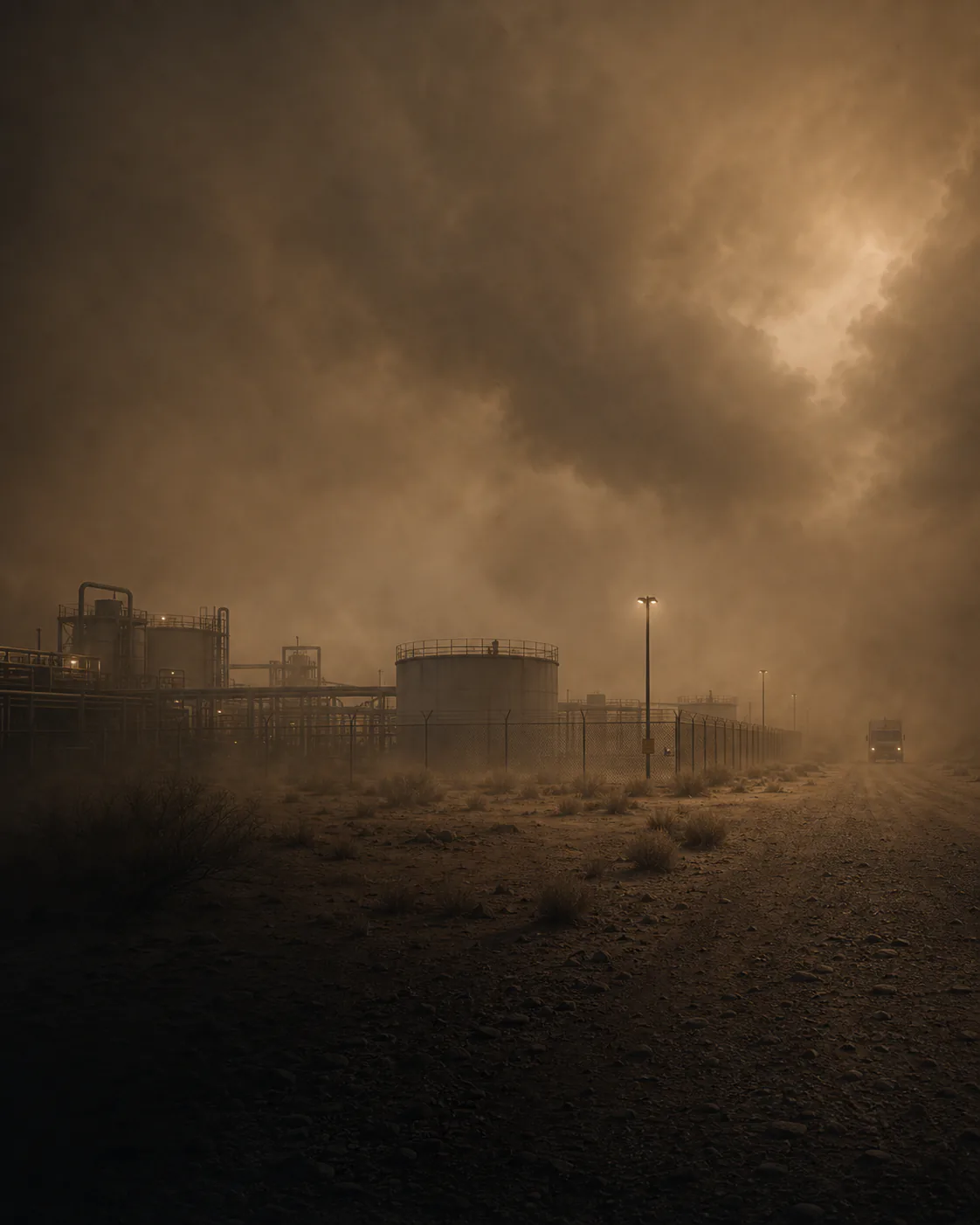

Sandstorm
Multi-sensor continuity.
04

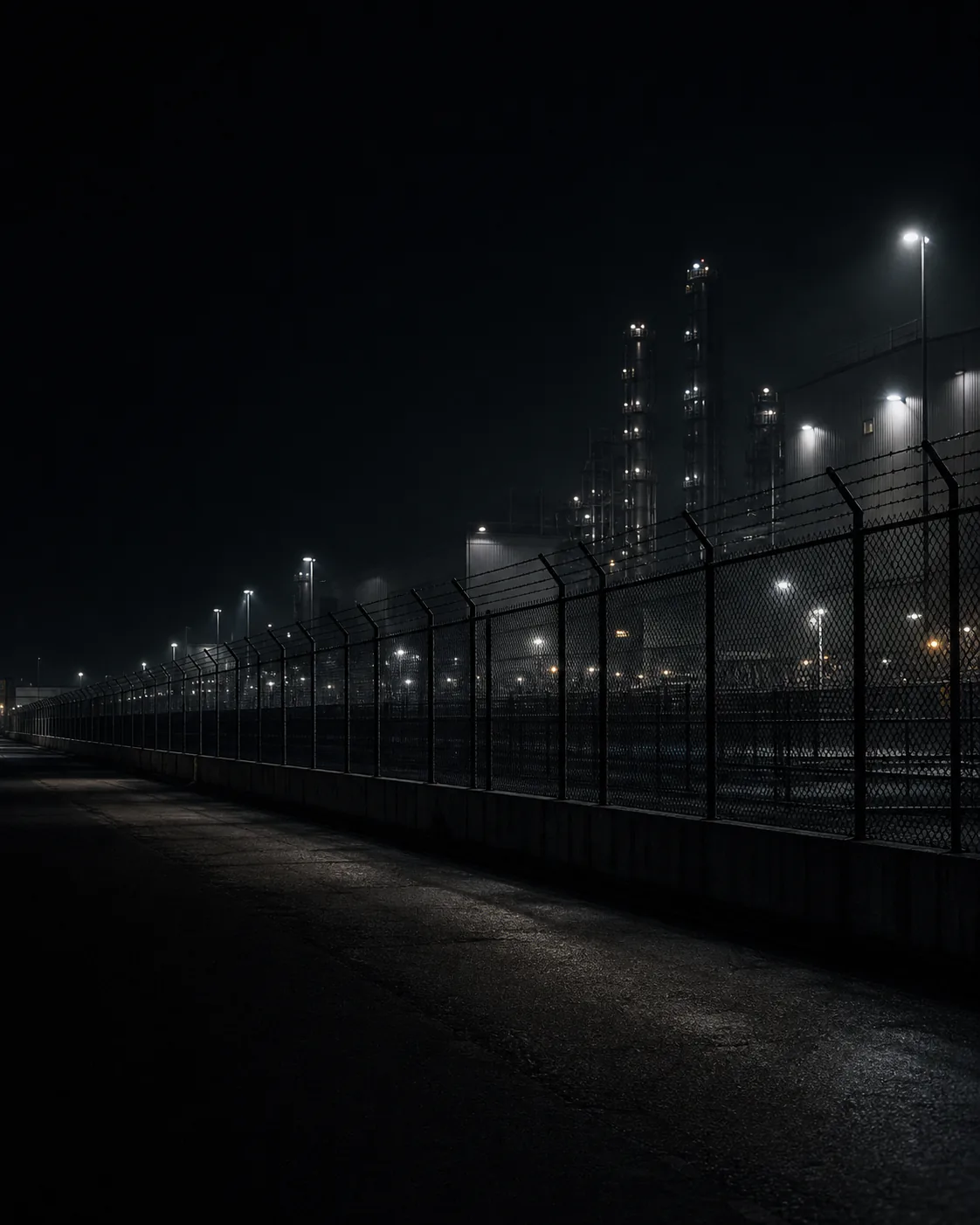

Black night
Day-to-night operations.
One workflow
CONFIGURED AROUND THE SITE.
A controlled sequence connecting initial discovery with airborne sensing and coordinated response.
Why multi-sensor
BOOK AN ON-SITE TEST
Connect with our team to explore solutions, request technical information, or discuss your integration environment.
